Automatic Die Cutting Machine

AOER's Automatic Die Cutting Machine integrates cutting-edge technology and robust engineering to meet printing and packaging industry demands, serving as a core production engine with unparalleled stability and efficiency. Available in models from AEM-800(Q) to AEM-1650S(Q), it handles sheet sizes 820×620 mm to 1670×1210 mm at speeds 3000-8000 sheets/hour. Compliant with European safety standards, it balances operability and safety, supported by AOER's 120+ models, continuous upgrades, comprehensive warranty (long-term training and 1-year free maintenance). Energy-efficient with precise controls and optimized processes, it reduces costs and aligns with sustainability goals, ideal for forward-thinking enterprises.

Excellent Equipment: Designed in accordance with European safety standards, it perfectly combines operability and safety.
R&D Capabilities: Over 120 models available, including product feature upgrades.
Warranty: Long-term, comprehensive technical training and one year of timely, free maintenance are provided.
Energy Saving: Precise control systems and optimized process flows reduce energy consumption and waste generation.

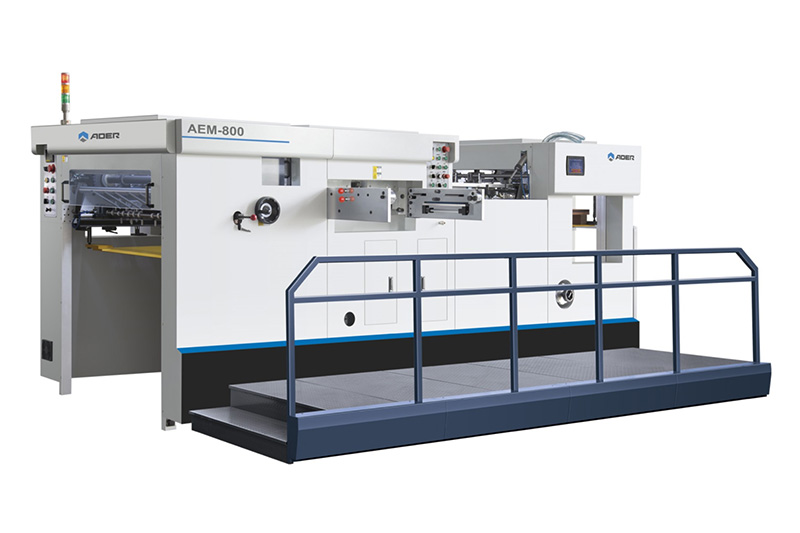

AEM-800(Q) Automatic Die Cutting And Creasing Machine With Top Suction Feeder

Specifications: Max. Sheet Size 820×620 mm, Max. Speed 7000 S/H

Core Features:Compact design, suitable for thin to medium cardboard (e.g., cosmetic boxes, labels)

Application Scale:Small printing houses, e-commerce custom packaging workshops

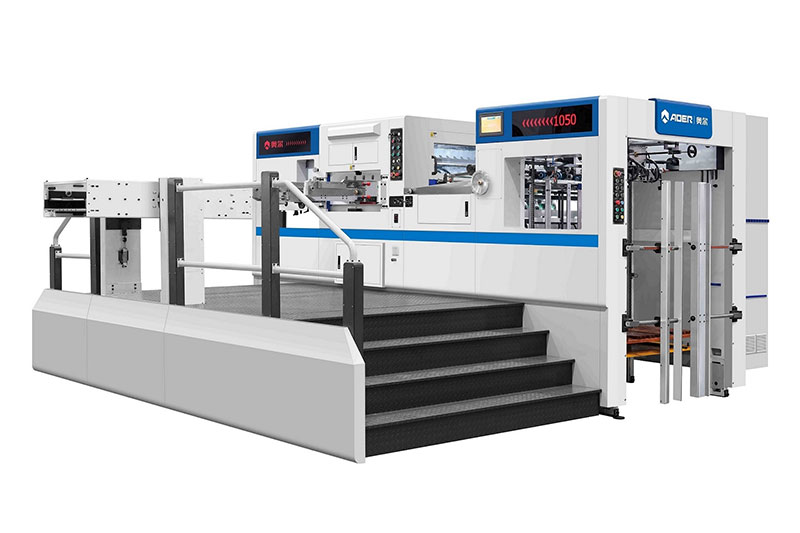

AEM-1050(Q) Automatic High Speed Die Cutting And Creasing Machine

Specifications: Max. Sheet Size 1050×750 mm, Max. Speed 7500 S/H

Core Features: Industry-leading speed, supports continuous die cutting for large-batch standardized orders

Application Scale: Medium-sized printing plants, express packaging manufacturers

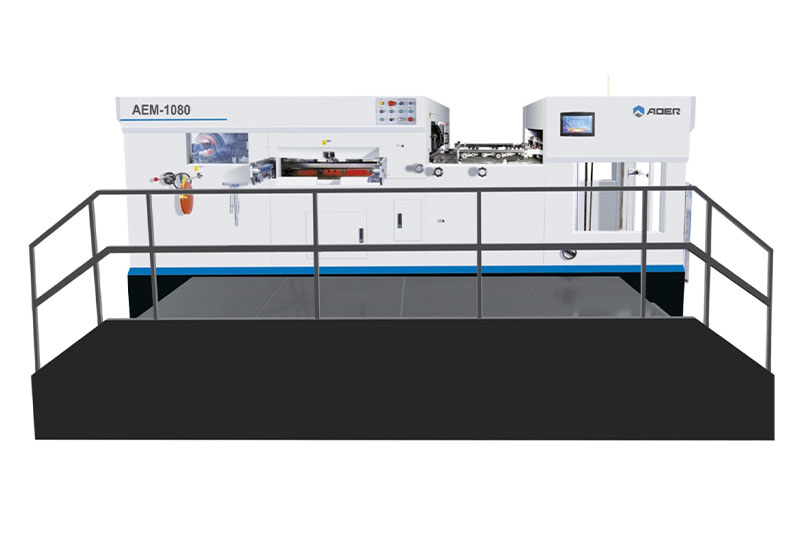

AEM-1080Q Automatic Die Cutting Machine With Auto Stripping Device

Specifications: Max. Sheet Size 1080×780 mm, Max. Speed 7000 S/H

Core Features: Automatic waste stripping reduces manual intervention and improves yield

Application Scenarios: Precision packaging (e.g., mobile phone boxes, luxury gift boxes)

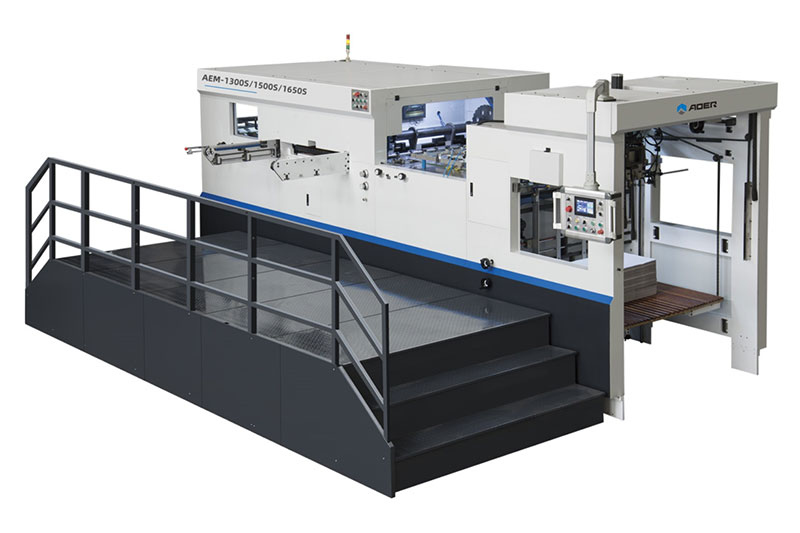

AEM-1300(Q) High Precision Flatbed Die Cutting and Creasing Machine

Specifications: Max. Sheet Size 1320×980 mm, Max. Speed 5000 S/H

Core Features: H250 material frame + 3000kN pressure, supports thick cardboard/corrugated paper

Application Scenarios: Home appliance outer packaging, heavy-duty product cartons

AEM-1500S(Q) Automatic Die Cutting and Creasing Machine

Specifications: Max. Sheet Size 1500×1100 mm, Max. Speed 4800 S/H

Core Features: Lead edge feeding system ensures stability at high speeds, suitable for large production lines

Application Scale: Enterprise groups, cross-regional packaging suppliers

AEM-1650S(Q) Fully Automatic Die Cutting Machine

Specifications: Max. Sheet Size 1670×1210 mm, Max. Speed 4500 S/H

Core Features: Extra-large format processing capability for industrial-grade cardboard and plastic sheets

Application Scenarios: Furniture packaging, automotive parts transport boxes

AEM-1650V(Q) Auto Flatbed Cardboard Box Die Cutting Creasing Machine

Specifications: Max. Sheet Size 1670×1210 mm, Max. Speed 4500 S/H, Cutting Plate Thickness 7mm

Core Features: Lead edge feeding system ensures stability for large-format cardboard processing, suitable for heavy-duty packaging production

Application Scenarios: Large-scale carton manufacturing, industrial packaging lines

AEM-1650Y(Q) Semi-automatic Die Cutting Machine

Specifications: Max. Sheet Size 1670×1210 mm, Max. Speed 4500 S/H, Cutting Plate Thickness 7mm

Core Features: Manual feeding with semi-automatic operation, balancing precision and flexibility for custom orders

Application Scenarios: Specialized packaging prototyping, small-batch luxury box production

AEM-1900V(Q) Auto Die Cutting Machine

Specifications: Max. Sheet Size 1900×1600 mm, Max. Speed 4200 S/H, Cutting Plate Thickness 7mm

Core Features: Industry-leading extra-large format capability, ideal for oversized industrial packaging

Application Scenarios: Furniture packaging, automotive parts transport containers

AEMG-800(Q) Auto Die Cutter with Waste Stripping

Specifications: Max. Sheet Size 800×620 mm, Max. Speed 7000 S/H, Cutting Plate Thickness 7mm

Core Features: Integrated waste stripping system, enhancing efficiency for small-format precision cutting

Application Scenarios: Cosmetic packaging, label production, pharmaceutical blister packs

AEMG-1080Q Automatic Die Cutting Machine With Auto Stripping Device

Specifications: Max. Sheet Size 1080×780 mm, Max. Speed 7000 S/H, Cutting Plate Thickness 7mm

Core Features: High-speed automatic waste removal, ensuring consistent quality for medium-format packaging

Application Scenarios: Electronic product boxes, consumer goods packaging

AEMG-1300X/1500X/1650X(Q) Lead Edge Feeding Automatic Die Cutting Machine

Specifications: Max. Sheet Size 1670×1210 mm, Max. Speed 5200 S/H, Cutting Plate Thickness 7mm

Core Features: Advanced lead edge feeding technology for high-speed processing of diverse materials

Application Scenarios: Multi-material packaging production, corrugated cardboard processing

Machine and advantages

Exquisite craftsmanship and structural innovation

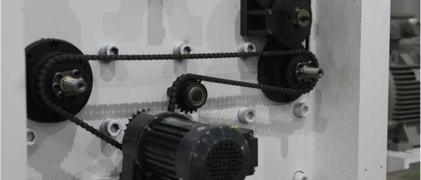

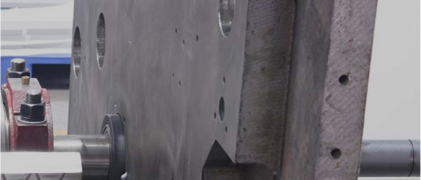

The AOER automatic punching and cutting machine adopts a H250 high-strength material frame, combined with integrated casting technology. The peak pressure output reaches 3000kN, enabling non-serrated cutting of paperboard, corrugated paper, and industrial plastic sheet materials with a thickness of up to 7mm. The core transmission components are equipped with high-quality cast copper alloy sliding bearings, with operating noise as low as 65 decibels (industry average 80 decibels), and at the same time, the equipment vibration amplitude is controlled within 0.1mm, ensuring the cutting accuracy during high-speed operation (±0.05mm).

Intelligent production and flexible adaptation

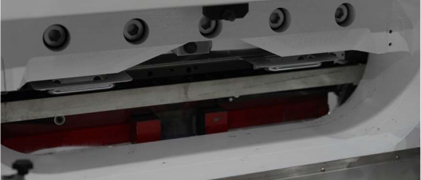

This machine integrates advanced cutting-in-system and feeding mechanisms, enabling seamless switching between single-sheet/continuous die-cutting modes. It is equipped with a 10.1-inch touch screen for intuitive parameter adjustment (real-time monitoring of cutting depth, pressure and speed). The innovative open-delay function can set personalized indentation delay ranges (0 - 50 milliseconds) based on material characteristics, perfectly adapting to the die-cutting requirements of different weights (80 - 1500 grams Schmid), applicable to over 20 application scenarios including cosmetic boxes, mobile phone packaging boxes and heavy-duty transport boxes.

Life Cycle Cost Optimization

With precise control systems and optimized process flows, this equipment can reduce energy consumption by 30% compared to traditional models, and keep the waste rate below 0.5% (industry average is 2%). The entire series is equipped with detachable mold heads and a quick tool replacement structure, reducing the tool replacement time to 15 minutes (traditional models require 40 minutes). AOER provides technical support covering the entire life cycle of the equipment, including 1-year free on-site maintenance, lifetime software upgrade services, and customized training programs for different production scale requirements, helping customers shorten the investment payback period to 12 months.

FAQ

Which production scenarios are suitable for different models of automatic die cutting machines?

AEM-800(Q) : Suitable for small and medium-sized packaging such as cosmetic boxes and labels, adapted to small printing houses and e-commerce custom workshops; AEM-1050(Q) : High-speed continuous die-cutting capability, meeting large-volume standardized orders of medium-sized printing plants and express packaging; AEM-1300(Q) : 3000kN pressure + thick cardboard processing capability, suitable for home appliance outer packaging and heavy product cartons; AEM-1650S(Q) : Extra-large format (1670×1210mm), capable of processing industrial-grade cardboard and plastic sheets, used for furniture packaging and automobile parts transport boxes.

What are the equipment's safety standards and energy-saving performance?

The equipment is certified to European safety standards, using H250 material frame and integrated casting process to ensure high strength and operational stability. In terms of energy saving, the precision control system and optimized processes reduce energy consumption and waste generation, meeting sustainable production needs.

What specific content does the after-sales service include?

Provide 1 year of free maintenance and lifelong technical training support. Core components (such as sliding bearings, die-cutting knives) are made of high-quality copper alloy material, reducing failure rates. The maintenance response is timely, and the detachable die head design facilitates daily cleaning and maintenance.

How to choose a model suitable for your own production capacity?

Processing size: From 820×620mm (AEM-800) to 1670×1210mm (AEM-1650) covering different specification requirements; Production speed: Low-speed models (AEM-1650S: 4500 sheets/hour) are suitable for thick material processing, and high-speed models (AEM-1050: 7500 sheets/hour) are suitable for large-volume standardized orders. It is recommended to select models comprehensively according to the maximum material size, daily production capacity and material thickness.
