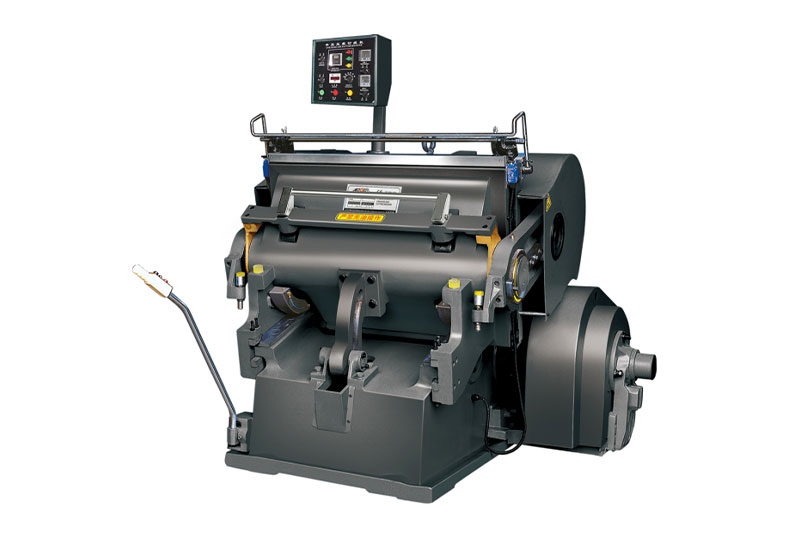

ML-1040 High Speed Manual Die Cutting Machine

With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

Frame inner size:1040×720mm

Speed:23±2/Min

Rule length:＜30m

Product Description

★ With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

★ Three functions: single sheet cutting, continuous cutting, delay cutting.

★ Main body is made of high quality integrated cast iron, with high strength and rigidity.

★ Suitable for cutting paper board, corrugated paper.

Product Details

Hi accuracy herringbone gear

Imported electrical elements

Curve ring and shaft with copper bushing

Operative die chase

Infrared safety

Automatic oil pump

Dedicated retaining device

Other Product

Frame inner size:930×670mm

Speed:23±2/Min

ML-930X Die Cutter Machine

Frame inner size:930×670mm

Speed:25±2/Min

Frame inner size:1040×720mm

Speed:23±2/Min

More information you want to see

Automatic vs Manual Die Cutting for Book Covers

2026.06.02

Trying to decide between manual and automatic die cutting for your book cover production? This guide...

Hot Foiling on Coated vs Uncoated Book Stocks

2026.05.29

Struggling with inconsistent hot foil results on different book cover stocks? This guide compares co...

Book Cover Creasing & Foiling with One Machine

2026.05.27

Wondering whether you can combine book cover creasing and hot foiling in one pass? This guide compar...

We value your privacy

We use cookies to provide you with a better online experience, analyse and measure website usage, and assist in our marketing efforts.

Accept All

ML-1040 die cutting and creasing machine
Frame inner size	1040×720mm
Dimension	1750×2000×1650mm
Speed	23±2/Min
Rule length	＜30m
Weight	3500Kg
Motor power	4KW-6H
