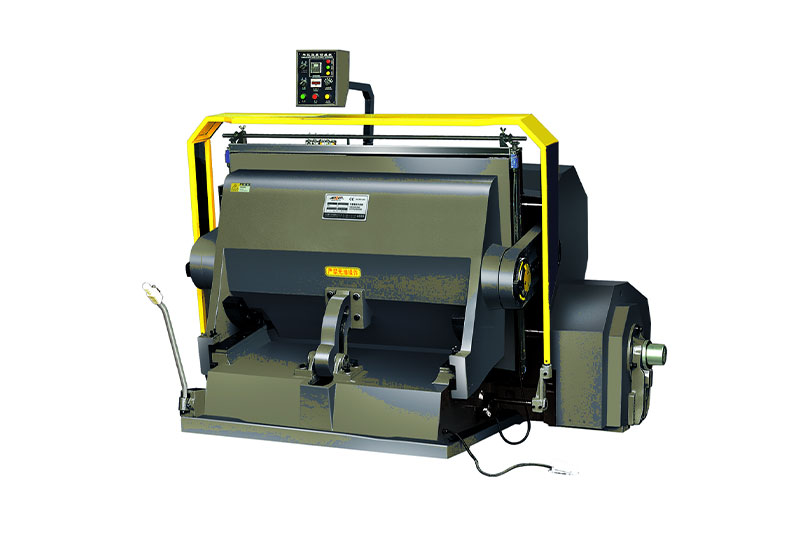

ML-1600 Heavy Duty Die Cutter

With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

Frame inner size:1600×1250mm

Speed:14±2/Min

Rule length:＜55m

Product Description

★ With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

★ Three functions: single sheet cutting, continuous cutting, delay cutting.

★ Main body is made of high quality integrated cast iron, with high strength and rigidity.

★ Suitable for cutting paper board, corrugated paper.

★ Sensitive electronic magnetic clutch.

★ Stainless steel base plate.

Product Details

Hi accuracy herringbone gear

Imported electrical elements

Curve ring and shaft with copper bushing

Operative die chase

Automatic oil pump

Dedicated retaining device

Other Product

TYMA-750 Manual Hot Foil Stamping Machine

Max sheet size:750×520mm

Speed:26±2/Min

TYMA-930 Hot Foil Stamping Machine

Max sheet size:930×670mm

Speed:23±2/Min

TYMA-930CE Hot Stamping Die Cutting Machine

Max sheet size:930×640mm

Speed:23±2/Min

More information you want to see

Is foil stamping the same as hot stamping?

2025.04.30

Actually, Foil stamping is a type of hot stamping. But hot stamping is broader, including processes ...

How to Choose a Die Cutting Machine for Your Business?

2025.04.01

Enterprises need to consider key dimensions such as production requirements, equipment type, quality...

How to use a hot foil stamping machine

2025.03.28

The main steps of hot foil stamping machine are preparing materials, installing foil, adjusting mach...

We value your privacy

We use cookies to provide you with a better online experience, analyse and measure website usage, and assist in our marketing efforts.

Accept All

ML-1600 die cutting and creasing machine
Frame inner size	1600×1250mm
Dimension	2780×2250×2400mm
Speed	14±2/Min
Rule length	＜55m
Weight	12000Kg
Motor power	11KW-6H
