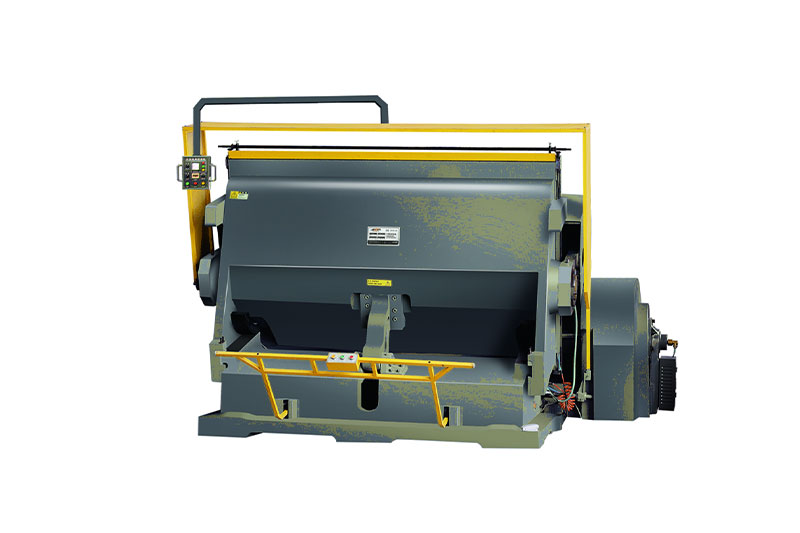

ML-3000 Flat-platen Manual Die Cutting Machine

With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

Max sheet size:3000×1600mm

Speed:11±2/Min

Rule length:＜90m

Product Description

★ With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

★ Three functions: single sheet cutting, continuous cutting, delay cutting.

★ Main body is made of high quality integrated cast iron, with high strength and rigidity.

★ Suitable for cutting paper board, corrugated paper.

★ Sensitive air clutch, ensure the safety.

Product Details

Hi accuracy herringbone gear

Imported electrical elements

Curve ring and shaft with copper bushing

Operative die chase

Infrared safety

Automatic oil pump

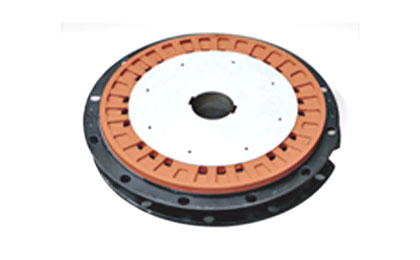

Sensitive air clutch

Other Product

TYMA-750 Manual Hot Foil Stamping Machine

Max sheet size:750×520mm

Speed:26±2/Min

TYMA-930 Hot Foil Stamping Machine

Max sheet size:930×670mm

Speed:23±2/Min

TYMA-930CE Hot Stamping Die Cutting Machine

Max sheet size:930×640mm

Speed:23±2/Min

More information you want to see

What is the use of cardboard?

2025.06.06

Cardboard, a versatile and widely used material in various industries, is often praised for its dura...

What is the difference between hot stamping and UV printing?

2025.05.30

Hot stamping uses heat/pressure to transfer foil for metallic/luxury effects, ideal for high-volume ...

Die Cutting Machine User Guide

2025.05.27

This comprehensive user guide is designed to walk you through every aspect of your Die Cutting Machi...

We value your privacy

We use cookies to provide you with a better online experience, analyse and measure website usage, and assist in our marketing efforts.

Accept All

ML-3000 die cutting and creasing machine
Max sheet size	3000×1600mm
Dimension	4200×2400×2580mm
Speed	11±2/Min
Rule length	＜90m
Weight	26000Kg
Motor power	30KW-6H
