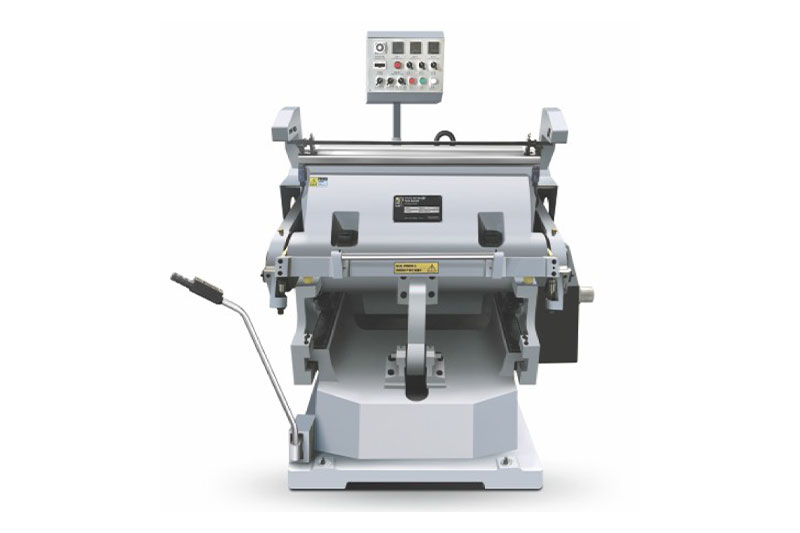

ML-750X Hot Foil Stamping and Die Cutting Creasing Machine

Resin sand casting, High strength cast iron HT200.

Frame inner size:930×670mm

Speed:25±2/Min

Rule length:＜30m

Product Description

★ Resin sand casting, High strength cast iron HT200.

★ Three functions: single sheet cutting, continuous cutting, delay cutting.

★ All the bearings and electrical parts are imported.

★ IR safety device.

★ Automatic central lubrication system.

★ Suitable for cutting paper board, corrugated paper

Product Details

Hi strength cast iron

Imported electrical parts and bearing

Curve ring and shaft with copper bushing

Operative die chase

Infrared safety

Automatic oil pump

Other Product

TYMA-750 Manual Hot Foil Stamping Machine

Max sheet size:750×520mm

Speed:26±2/Min

TYMA-930 Hot Foil Stamping Machine

Max sheet size:930×670mm

Speed:23±2/Min

TYMA-930CE Hot Stamping Die Cutting Machine

Max sheet size:930×640mm

Speed:23±2/Min

More information you want to see

Is foil stamping the same as hot stamping?

2025.04.30

Actually, Foil stamping is a type of hot stamping. But hot stamping is broader, including processes ...

How to Choose a Die Cutting Machine for Your Business?

2025.04.01

Enterprises need to consider key dimensions such as production requirements, equipment type, quality...

How to use a hot foil stamping machine

2025.03.28

The main steps of hot foil stamping machine are preparing materials, installing foil, adjusting mach...

We value your privacy

We use cookies to provide you with a better online experience, analyse and measure website usage, and assist in our marketing efforts.

Accept All

ML-930A die cutting and creasing machine
Frame inner size	930×670mm
Dimension	1960×1760×1720mm
Speed	25±2/Min
Rule length	＜30m
Weight	3200Kg
Total power	4KW
