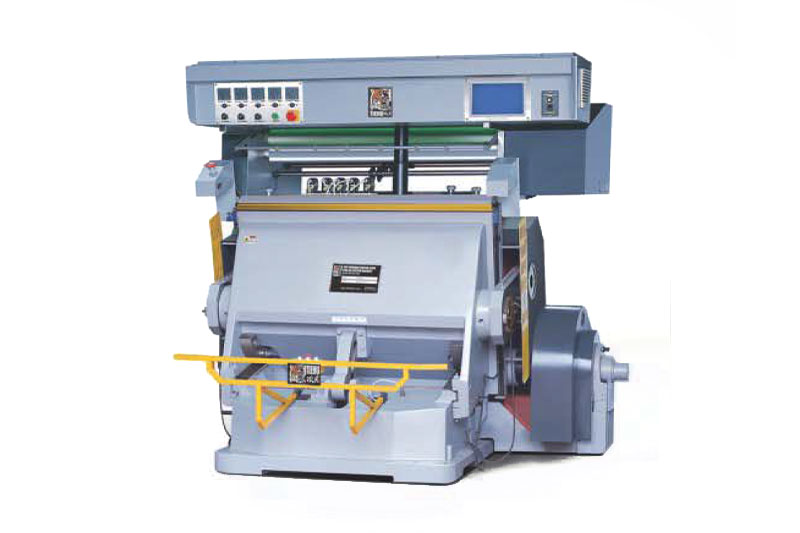

TYMA-1400 Hot Stamping Machine

TYMA-1400 Hot Stamping Machine can meet the needs of hot stamping of larger-sized materials. It works stably and efficiently, and can produce good hot stamping results for both paper and plastic products.

Max sheet size:1300×920mm

Speed:16±2/Min

Dimension:2200×2300×2300mm

Product Description

Features

★Resin sand casting, High strength cast iron HT250.

★Enhanced nodular pulling arm.

★Three functions: single sheet cutting, continuous cutting, dwell cutting.

★ All the bearings and electrical parts are imported.

★ IR safety device.

★Automatic central lubrication system.

Hot foiling system

★ TYMA series machine has hot foil stamping, die cutting and embossing functions.

★ 3 set of PLC controlled step motor, easy to adjust and have high accuracy.

★ Stepper motor has large torque and can set the requested size, make the job accurate and reduce waste.

★ Separate gear motor for unwinding and rewinding, makes the unwinding and rewinding more convenient.

★ Aluminum alloy anilox rollers after special process treatment, has the feature of light and long durability.

★ Optional honeycomb plate makes change over more convenient and easy for makeready.

★ 4 temperature zone, stainless steel heaters make sure the fast heat up, saving power, and increase the hot foil stamping quality.

Product Details

Hi accuracy herringbone gear

Imported electrical elements

Curve ring and shaft with copper bushing

Operative die chase

Infrared safety

Automatic oil pump

Imported PLC

Hi accuraccy step motor

Aluminum alloy anilox roll

Gear motor

Stainless steel heater

Drawer type unwinding device

Enhanced Main body

Copper bushing

Imported electrical parts and bearing

Drawer type foil unwinder

Honeycomb heating plate (Option)

TYMA-1400 hot foil stamping machine
Max sheet size	1300×920mm
Dimension	2200×2300×2300mm
Speed	16±2/Min
Foil quantity	3pcs
Weight	7500Kg
Total power	26.5KW
